Miniflow – GTM – closed gate diameter

TECHNISCHE INFORMATION:

For tunnel gating of small, thin-walled moldings.

This gate insert has a closed gate diameter and is therefore suitable for the use of low article weight and for very thin-walled moldings.

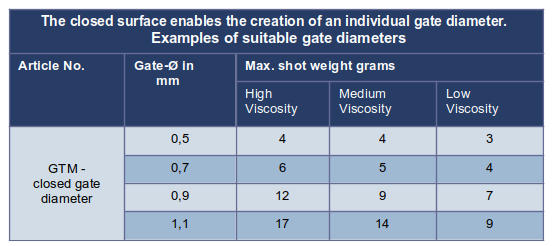

The closed surface enables the creation of individual gate diameter:
Smallest gate diameter of 0.3 mm. Largest gate diameter up to 1.4 mm.

Usable for all thermoplastics including fillers up to 50 % glass fibre.

>>NEW: Miniflow – GTM closed gate diameter Download


  • >> Miniflow “Thin-walled parts” Features:

    • For particularly thin-walled moldings (wall thickness 0.5 to 1.2 mm). This gate insert posses no calotte and is therefore suitable for very thin-walled moldings.
    • Attention: The gating point will be flush with, or slightly projecting from, the bottom surface depending on plastic used.

    bsp_gtm_neu_gross
    bsp_gtm_gross
  • Installation dimensions “GTM”

    Recommended distances “L” from the injection point to the sprue ejector are given below for the various material groups.

    The distance “AT” describes the correlated ejector depth.

    Einbaumass_gtm_englisch

    Einbaumass_standard
  • Thermoplastics Elastomers

    When processing thermoplastic elastomers, please observe the following recommendations to ensure reliable de-molding:

    • The distance “L” should decrease with the Shore hardness value.
    • The guide length L*0.8 does not apply to TPEs (or TPU, TPA, respectively). In these applications, a centering cone should be provided as shown in our drawing.
    • This application instruction applies to elastomers in the medium Shore hardness range (uo to 100 Shore A).

    tpe_englisch

  • Gate sizes

    We would like to make it as easy as possible for you to select the right gate size. To help you make your choice we have plotted a number of charts indicating the range of possible gate sizes for a given molding weight and material. Please take into account the viscosity of the plastic before making your selection. Since the plastics industry is marketing an ever growing number of modified plastics in each category, it is impossible to provide binding data here. Please also note our warranty disclaimer.

    table_of_viscosity_low_Standard_800x900.svg

  • EXAFLOW Tunnel Gate InsertsCatamold 420W-DIN 1.4028-X20Cr13

    Material designation:
    BASF Catamold 420W – DIN 1.4028 – X20Cr13.
    Hardable stainless steel for production of MIM-Parts.

    Applications:
    Components with high hardness and wear resistance combined with good corrosion resistance against water and steam; e. g. tools, cutting blades, surgical instruments, nozzles, bearings.

    • High wear resistance
    • High corrosion resistance
    • Good machinability
    • Weldable

    Composition:
    C = 0.35 – 0.50 %
    Cr = 12 – 14 %
    Fe = Balance

    Surface quality, roughness Ra 0.8 – 1.3

    Properties:
    Density 7.6 g/cm³
    Carbon content 0.35 – 0.50 %
    Hardness 50 +5 HRC
    Ultimate Tensile Strength Rm      (heat-treated) 1560 mm²
